Energy Storm Ride | Extreme Sensation Ride
40 Riders · 3 Arms · 4 Movements · 600 pph · 115 kW · Factory Direct
40-Seat 3-Arm Multi-Spinning Thrill Ride – 4 Movements for Extreme Sensation
Energy Storm Ride (also called Extreme Sensation Ride, Energy Claw Ride, Multi Spinning Thrill Ride, Carnival Storm Ride, or 3 Arm Spinning Flip Ride) is a 4-motion thrill flat ride. The ride consists of a rotating centre onto which 3 arms are attached. Each arm holds a satellite with 4 cars, and each car seat has an individual over-the-shoulder bar plus a safety belt for passenger safety.
4 Movements of the Ride:
- 360° rotation of the centre (counter-clockwise) – speed from 0 to 9 rpm
- Main arm elevation bringing the cars to height (up to 5.8m)
- Satellites rotate clockwise – max speed 18 rpm
- Cars turn passengers upside down – thrilling inversion experience
Height restriction: 120 cm (48 in) minimum | Heavy‑duty galvanized steel frame, anti‑rust for outdoor use
Energy Storm Ride – Key Technical Highlights
Energy Storm Ride – Complete Specifications
| Height (Max) | 6 m (20 ft) |
| Footprint (Diameter) | Ø 16 m (52.4 ft) |
| Centre rotation speed | 0–9 rpm (counter-clockwise) |
| Satellite rotation speed | Up to 18 rpm (clockwise) |
| Restraint type | Controlled over-the-shoulder + safety belt |
| Height restriction | 120 cm (48 in) minimum |
| Theoretical hourly capacity | 600 pph |
| Load/unload time | 120 s |
| Ride time | 120 s |
| Instant capacity | 40 adults |
| Power requirement | 115 kW |
| Indoor / Outdoor | Outdoor recommended (weatherproof) |

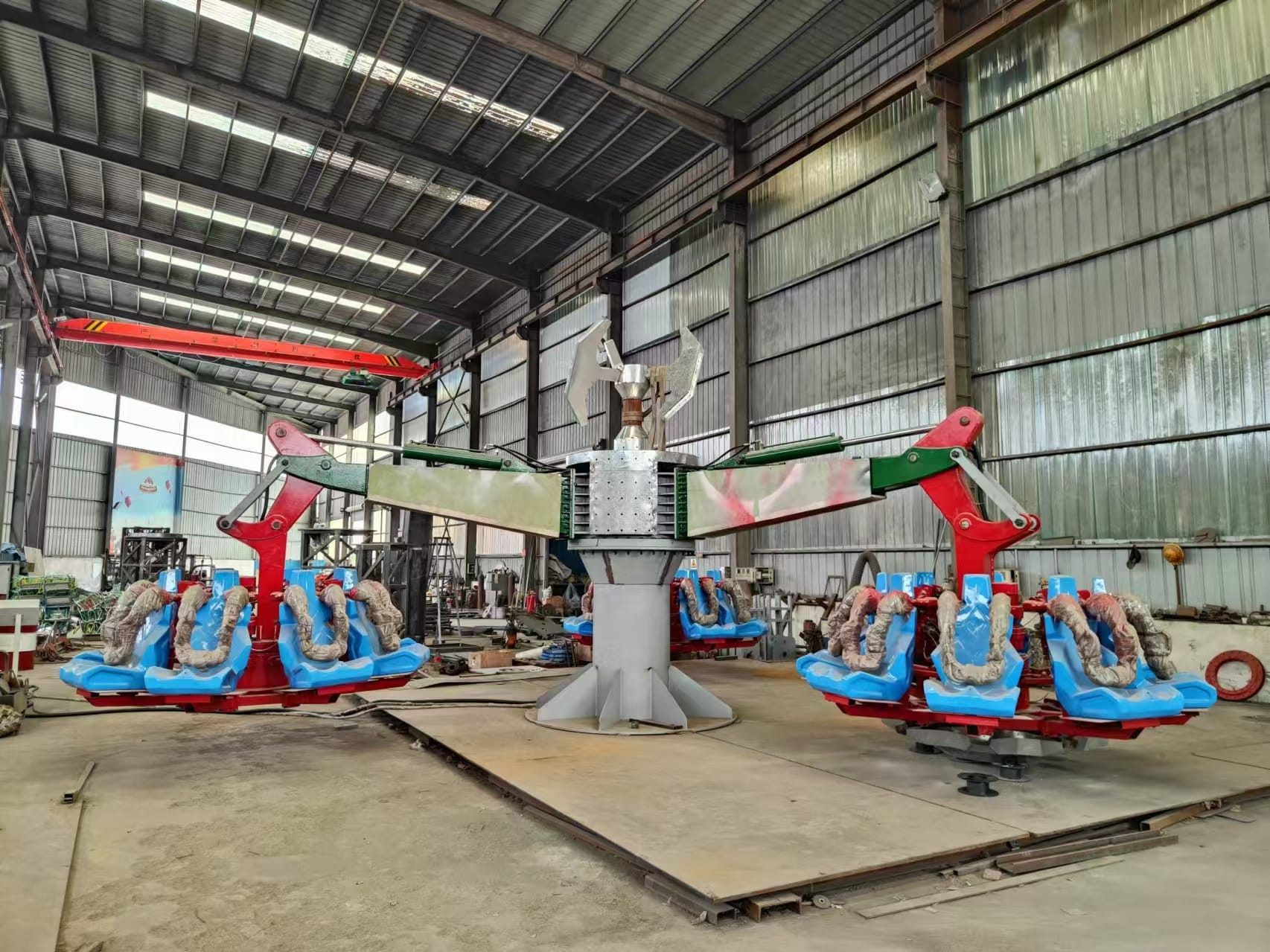

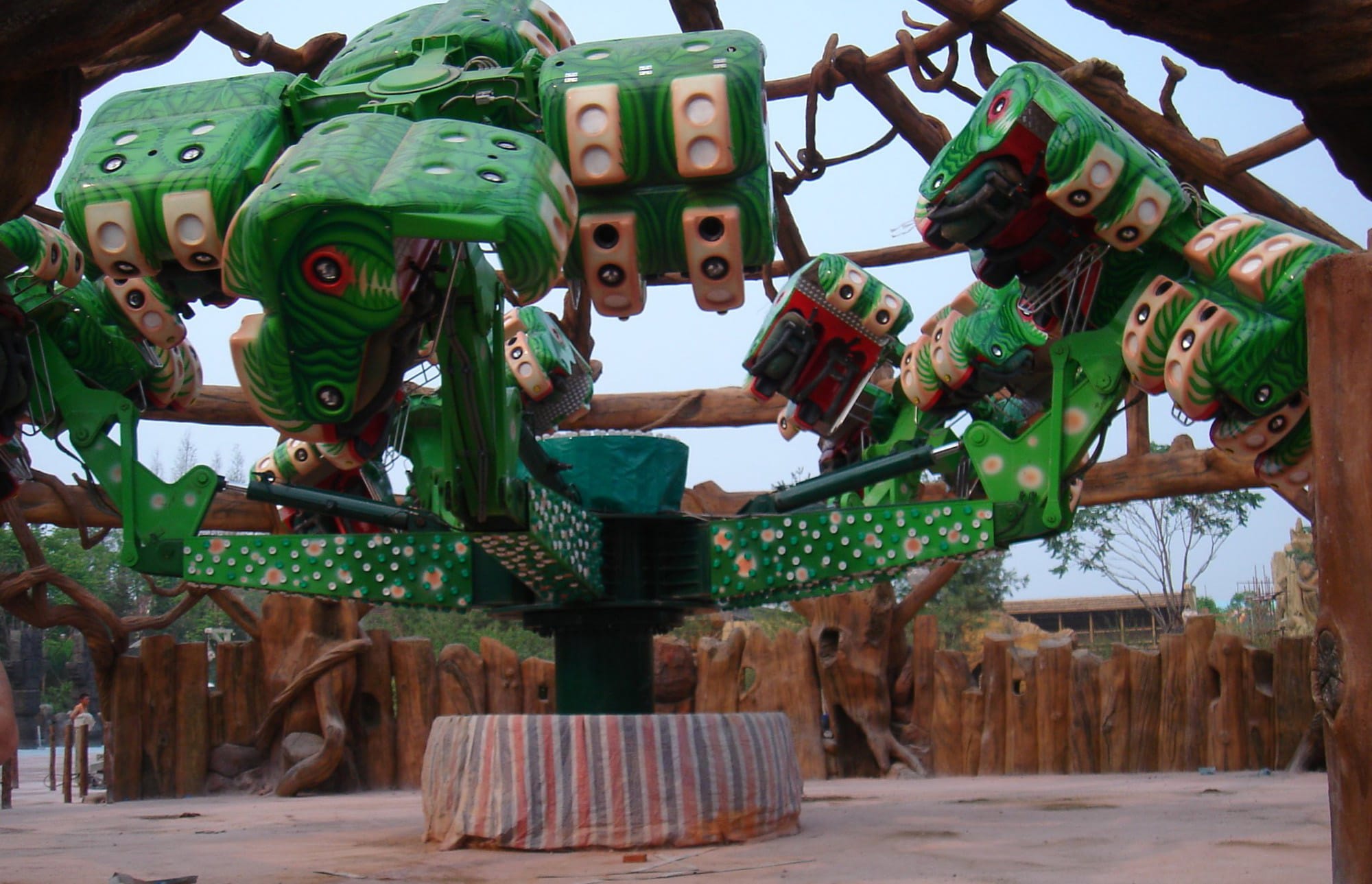

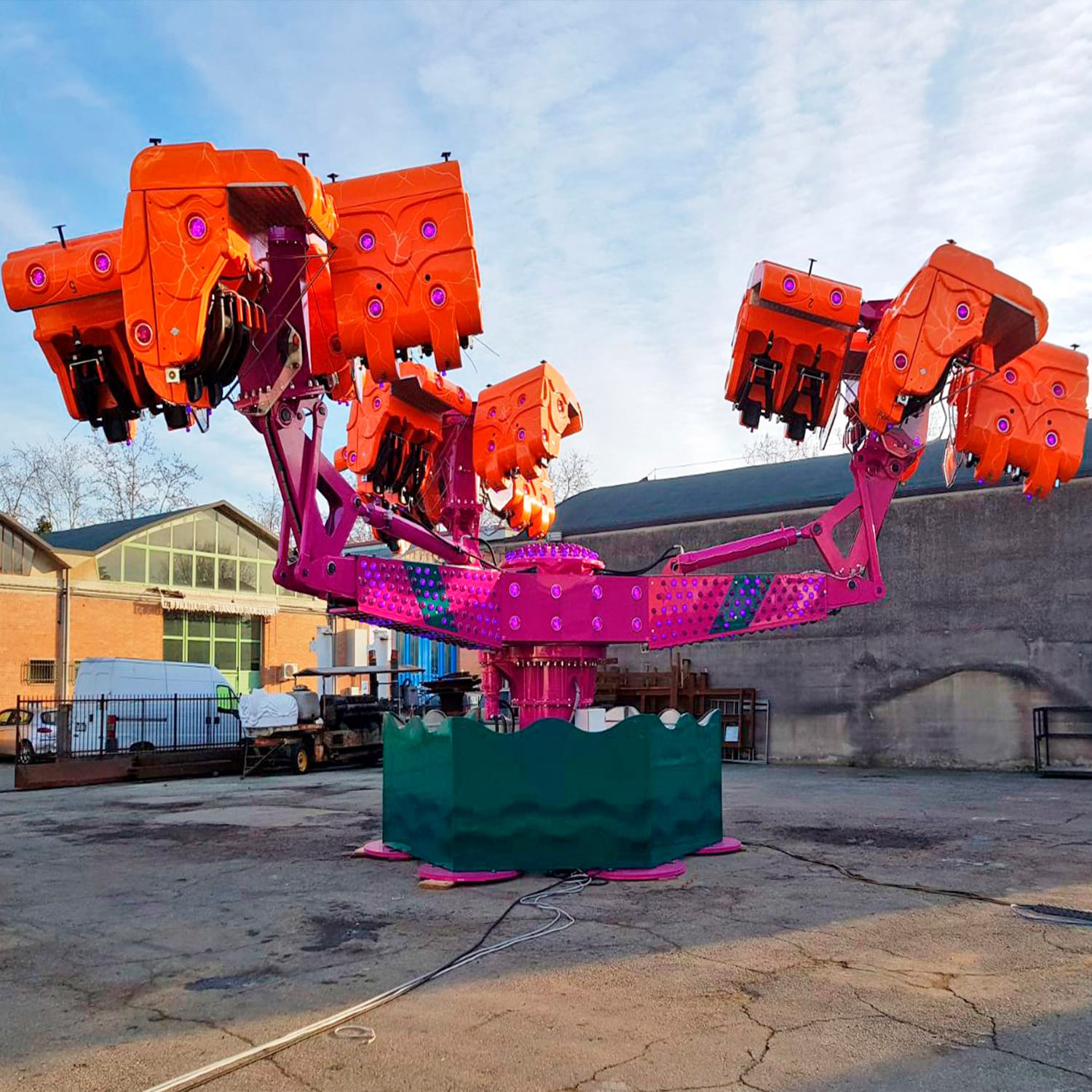

Energy Storm Ride – Gallery
Real park installations, LED lighting effects, and thrilling spinning action
What Park Owners Say About Energy Storm Ride
Michael Wang
Park Director, Wonderland
“The 4 movements keep riders guessing. The upside-down moment is pure thrill – guests ride it over and over.”
Sarah Johnson
FEC Owner, Florida
“600pph throughput is insane for a compact footprint. The LED package draws huge night crowds.”
Lars Kruger
Operations Mgr, Germany
“Energy Storm is our best ROI ride. Low maintenance, high appeal, and the safety restraints give us peace of mind.”
RFQ – Energy Storm / Extreme Sensation Ride for Sale
Get factory direct quote for 40-seat multi-spinning thrill ride – Energy Claw Ride, Carnival Storm Ride, 3 Arm Spinning Flip Ride – B2B purchase guide
Q: What are the 4 movements of Energy Storm Ride?
A: 1) 360° centre rotation (0-9 rpm CCW), 2) Main arm elevation up to 5.8m, 3) Satellite clockwise rotation (up to 18 rpm), 4) Cars turn passengers upside down.
Q: What is the capacity?
A: 40 adults per cycle. Theoretical hourly capacity 600 pph.
Q: Is it suitable for outdoor parks?
A: Yes, heavy-duty galvanized steel frame and weatherproof electrics are designed for year-round outdoor operation.
Q: What safety features are included?
A: Individual over-the-shoulder restraints + safety belts per seat, dual emergency stop, and CE certification.
Q: What is the power requirement?
A: 115 kW industrial power supply, compatible with global voltage standards.
Q: Lead time and warranty?
A: 45-60 days production, 12-month warranty, lifetime technical support.
